Rigoli Folders

logo_rigoli_2017

Folder off-line

RIG.750

RIG.750

rig-750This is a low cost Entry level folder, which will save the user hours of manual folding time and is simple and easy to operate. The Rig 750 is a compact unit, whereby the feed table has the ability to fold up when not is use, saving further space.

The Rig 750 produces a crisp even fanfolded drawing, and by re-entering the drawing into the folder, it will produce a final Cross folded drawing as well.

The folder has two fold widths 210mm & 190mm and has a folding speed of 6 A0’s per minute.

Technical features

  • Simple and efficient folding, it is ideal for low volumes of folding.
  • Digital technology with two programmed folding sizes:
    • Parallel folding at 190mm (7,5”), with random final
    • Parallel folding at 210mm (8,27”), with random final
  • Max width of paper sheet: 92cm (36”)
  • Max length of paper sheet: 2,5m (100”) approx.
  • Back or front copy ejection depending on length of paper sheets
  • Speed: 6 A0 per minute.
  • Precise and extremely silent functioning
  • Model supplied with floor support stand on wheels
  • Dimensions: cm 117(W) x 94(D) x 103(H), with closed table cm 71 (D); Net weight 80kg.

rrp £3,990.00

Delivery, installation & operator training £295.00

RIG750

RIG.800

RIG.800

rig-800The Rig 800 folder is fitted with a similar roller system used on the larger series folders such as the Rig 801/804 series and will produce a more accurate and better fold quality.

In addition to the standard 210mm & 190mm fold types, the user has the ability to alter the fold widths for other type of documents or drawings. The folder is especially useful for Map folding or Oil logs, were smaller or larger folds are required.

The Rig 800 produces a crisp even fanfolded drawing, and by re-entering the drawing back into the folder, it will produce a final Cross Folded drawing. The folding speed is 7 A0’s per minute.

Technical specifications

  • Automatic folding machine for drawings widths up to 92 cm wide (36′) and un-limited length in 3 metre multiple-sections.
  • Digital technology offers a wide range of folding options at truly impressive speed of 7 A0 drawings per minute.
  • Multi-programmable, with or without Filing margin 20 mm, and with Fold width adjustable from 170-220 mm in 1 mm steps.
  • Back or front copy ejection depending on length of drawing.
  • Precise and quiet in operation.
  • Model supplied with floor support stand on wheels
  • Dimensions: cm 117(W) x 94(D) x 103(H), with closed table cm 71 (D); Net weight 80kg.

rrp £4,710.00

Delivery, installation & operator training £295.00

RIG.801

RIG.801

rig-801-1

The Rig 801 folder is a high performance Off-line folder which is ideal for use in both the Design Office or a Copy Shop environment. The Rig 801 is used extensively in the Rail Industry to fold drawings over 4 meters long.  The heavy duty roller system fitted to this folder, is designed to cope with the heaviest of workloads and still able to a produce consistent fold quality.

The folder can be fitted with a separate Cross Fold unit, to allow the drawings to be folded down to an A4 format.

Technical Specifications

  • Will fold upto 107cm wide and unlimited length in 4 meter sections up to a maximum length of 4 meters.
  • Digital technology with four programed folding modes. Presentation mode – first and last fold the same width Filing mode, with projecting fold of 20mm, ideal for punching and putting into folders Parallel mode with the width of the last fold unspecified Cross-fold mode, with second pass adjustable from 280mm – 310mm
  • Fold width adjustment from 175mm – 215mm in 1mm steps.
  • Heavyduty rollers for consistent fold quality and smooth operation.
  • Sturdy floor stand and catch trays
  • Small footprint – 134 x 107 x 104(h)cm net weight 120kg

rrp £6,510.00

Delivery, installation & operator training £495.00

Rig801 depl ingl

RIG.801T

RIG.801T

RIG-801T-1Offers a complete off-line folding solution, which offers a Fan and Crossfold facility in one step without having to re-introduce the drawing into the folder. The finished drawing will be presented in a A4 format, ready to post or file. This is a highly productive solution for the larger print room or Copyshop.

A separate motorized stacker can be added to this unit, which will hold upto 200 drawings.

Technical Specifications

  • Length; fan and cross fold: max 2,5m Fanfold unlimited in 4 meter sections.
  • Digital technology with four programed folding modes. Presentation mode – first and last fold the same width Filing mode, with projecting fold of 20mm, ideal for punching and putting into folders Parallel mode with the width of the last fold unspecified Cross-fold mode, with second pass adjustable from 280mm – 310mm
  • Fold width adjustment from 175mm – 215mm in 1mm steps.
  • Heavyduty rollers for consistent fold quality and smooth operation.
  • Sturdy floor stand and catch trays
  • Small footprint – 134 x 107 x 104(h)cm  net weight 120kg

rrp £11,050

Delivery, installation & operator training £495.00

Rig801 depl ingl

Folder on-line

RIG.804/804T

RIG.804/804T

rig-804-t

The new generation of Inkjet printers are getting faster which has increased the output of Colour CAD drawings dramatically. This increased demand has meant an increase in the Cad operators time manually folding drawings. To solve this problem Rigoli have produced the Rig 804 On-Line folder to reduce the bottle neck and speed up the drawing production time.  The Rig 804 is designed to work with both the HP and Canon series printers, these include the Hp T7100 and Hp 4020/4520 series along with the Canon IPF range. Two versions are available, Cross Fold only or Fan & Crossfold.

rig-804-t-2

Technical Specification

  • Folding group  Canon IPF Range, and HP T7100 & 4020-4520 colour ink-jet.
  • Functions: fan and cross folding in one step (model Rig.804T).
  • Storage on vertical collector included
  • Max width of paper sheet: 107 cm. (42”)
  • Length:up to 3m fan and cross folding.
  • Digital technology with the following folding programs:
    • Programmed folding – first and last folding equal in width
    • Filing folding with border of 20 mm (configurable for other widths) for files storage
    • Parallel mode with random width of last fold
    • Cross-fold mode (max. A0) in one step adjustable from 280 to 310 mm
  • Adjustable folds: 175÷215 mm with 1 mm steps
  • Possibility to introduce paper sheet manually
  • Ideal for both the Design Office and Copy Shop



Rig 804 – On line folder with automatic on line table, rrp £8,587.00. High capacity stacker for finished FANFOLDED prints. Drawings upto 4 meters can be manually fed back into.

Delivery only £250 or delivery & installation £595.00

Rig 804T – as above, the T version is complete with a Crossfold unit and vertical stacker, rrp £10,950.00.

Rig804 with Canon

RIG.805

RIG.805

rig-805

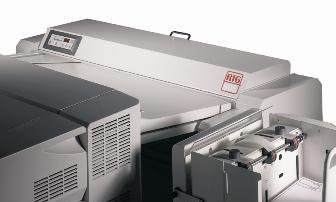

The Rig 805 is high volume output folder designed to work in conjunction with the leading manufacturers of Wide Format Digital printers, Kip, Canon and Ricoh. This folder is a must for the busy design office or Copy Shop. The Rig 805 speed is matched to the printer to ensure simple workflow between the folder and the printer. The folder produces high quality folded drawing output in either a fanfolded or finished A4 format. The folder is completely automatic and requires no operator intervention. It is also possible to use the Rig 805 as an off-line folder by introducing drawings manually from other printers.

Technical Features:

  • The machine folds paper sheets of up to 92 cm wide and longer that 3 m (fan folding) and up to 3 m (fan and cross folding)
  • Speed in synchronism with the printer  to which it is connected; or up to 17 m/min with manual introduction of paper.
  • Digital technologies with three folding programmes:
    • Programmed fold – first and last fold equal width
    • Filing fold with border of 20 mm (configurable for other widths) for files storage
    • Parallel fold with random width of last fold (only fan folding)
  • Adjustable folding measurements: 175 to 215 mm with 1 mm steps
  • Automatic and manual introduction of paper sheets
  • Automatic rotation of A2 format in model Rig.805R
  • Silent functioning
  • Support stand movable on guides
  • Overturnable table to facilitate the access to the printer
  • 2 copy trays included in the standard model, that can be replaced by the optional Stacker for A4 packs (only for mod. Rig.805T and Rig.805RT)

CROSS-FOLDING

  • Final folding size A4 (210 x 297 mm)
  • Fold adjustment 280 to 310 mm.

ADHESIVE STRIP optional

  • Automatic pre-punched adhesive strip applicator of 2-hole type
  • Usable for folding: 190 mm + 20 strip
  • Strip types: plastic or cardboard

The folder is available in four models:

  • RIG.805  Fanfold model only, £7,595.00
  • RIG.805R – with rotating feed table, which allows the folding of A2 drawings along with A0 and A1 sizes from a printer with only 2 paper rolls. £7,958.00 With 3 rolls you can fold also A3 and A4 which allows to print booklets with correct page order.
  • RIG.805T does the fan and CROSS folding in one step obtaining the final A4 pack. £11,990.00
  • RIG.805RT with fan and CROSS folding and Rotation of A2 paper sheets to a final A4 document. £12,170.00

Delivery, installation and operator instruction, 1 day £695.00, prices exclude VAT.

RIG.805 folder

RIG.807

RIG.807

rig-807-pic1

The RIG.807 is a compact on line folding system is the ideal partner for your Wide Format Digital mono printing device. The speed of the on-line folder is perfectly matched to your printing device, with folding speeds upto 14.4m/min. The compact design saves much valuable floor space without sacrificing features and is supplied with all the necessary accessories to obtain folding in final format A4 of all your drawings.

Models available:

  • RIG.807 for print-engine up to 6 m/min.
  • RIG.807 plus for print-engine up to 10 m/min.
  • RIG.807plus.8 for K8000/9000 up to 14,4 m/min

rig-807-pic2RIG.807 includes as standard:

  • Fan folder
  • Cross folder
  • Folded copies stacker on the top
  • Vertical tray, on the rear, for unfolded prints

Technical Specifications RIG.807 and RIG.807 plus

  • Fan and cross folding in one step.
  • Max width of paper: 91,4 cm.
  • Max length: up to 3 meters fan and cross folding; over 3 meters only fan folding.
  • Digital technology with the following programs:
  • Programmed folding – first and last folding perfectly equal in width.
  • Filing folding with border of 20 mm (configurable for other width) for files storage.
  • Cross fold mode in format A4 in one step
  • Fan fold size: selectable from 175 mm to 215 mm with 1 mm step.
  • Cross fold size: selectable from 280 mm to 310 mm with 1 mm step.
  • Speed of folding is sinchronyzed with the printing speed of the connected plotter.
  • Folded copies stacker (for up to 180 A0) on the top of the machine on the horizontal belt.
  • Vertical tray, on the rear, for unfolded prints.
  • High quality of folding, thanks to the modern digital technology applied.
  • Model with very reduced dimensions: 151(W) x 116(D) x 110(H) cm – 275 Kg.
  • RIG.807 for print-engine up to 6 m/min. Special Web price    £12,450.00
  • RIG.807 for Canon PW 300/350/360. Special Web price    £12,450.00
  • RIG.807 plus for print-engine up to 10 m/min. Special Web price    £13,250.00
  • RIG.807plus.8 for K8000/9000 up to 14,4 m/min. Special Web price    £13,995.00

Delivery, installation and operator instruction, 1 day, £695.00 (prices exclude VAT).

RIG.807 folder





Thuderjet Printer

Thunderjet Printer

Rigoli Thunderjet Printer

The World’s Fastest Wide Format Inkjet Printer

Features

The Rigoli Thunderjet wide  format printer targets several print applications, including CAD, AEC, GIS and point-of-sale graphics with a combination of speed and quality never before thought possible.

Inside the Thunderjet  is a revolutionary Memjet technology with five printheads for single-pass wide format printing of uncompromised speed and quality. Compared to traditional inkjet, the Thunderjet   prints up to eight times faster for incredible job turnaround times and attractive total cost of ownership.

Coupled with some of the most environmentally friendly inks available and very low power consumption, the Thunderjet wide format printer is not only fast, flexible and of premium quality, but also a friendly product for our environment.

The Rigoli Thunderjet  Print Engine features over 350,000 nozzles (70,400 nozzles per printhead x 5 printheads) that deliver millions of drops of ink every second. Our 8.77-inch-wide printhead delivers 1,600 dpi native print resolution in process color (CMYK). Our 42” (1067mm) wide print engine is capable of printing on-demand print speeds of 6 inches (150mm) or 12

inches (300mm) per second. A standard D size or A1 size plot can be printed in 2 or 4 seconds respectively. Each ink color is delivered via a large bulk ink tank (2 liters or 10 liters).

Technology

  • Single pass thermal inkjet
  • Four colors – CMYK
  • Dye based aqueous inks, Colors: CMYKK
  • Cartridge sizes 2 litre or 10 litre (optional)

Imaging

  • Fixed thermal printhead
  • Five color channels – CMYKK
  • 70,400 nozzles
  • 1,2 pL droplet size
  • Black or Colour outpur
  • Upto 1600 dpi print quality

Print speed

  • 30 cm/s (12 ips) or 15 cm/s (6 ips)
  • 1000 sq.m/hour (9,688 sq.ft/h) or 450 sq.m/h (4,844 sq.ft/h) graphics
  • 450 separate sheets DIN A0/hour CAD/GIS (932 or 466 ANSI E size/hour)

Media format

  • Width: 210 mm (8.27”) to 1067 mm (42”)
  • Length: 210 mm to 200 meters
  • Thickness: 80 gsm to 300 gsm
  • Continuous roll or cut sheet on plain (CAD), matt, glossy, satin, backlit, self -adhesive, PE, PP, blueback and other inkjet-coated media

Media handling

  • Heavy duty 2 rolls
  • Printhead alignment is stored “per roll” to allow for different media
  • 200m rolls (dependent upon media thickness)
  • 3 inch core media
  • Manual sheet feed – max 500 micron
  • Roll changing during printing
  • Roll-to-Sheet, Roll-to-fold, Roll-to-roll (in development), Sheet-to-Sheet

User interface

  • Intuitive graphical user interface on touchscreen display
  • ‘Liberty’ printer control software
  • Caldera GrandRIP+ software
  • Caldera Easymedia profiling and color management
  • Caldera Costproof (option)

Controller configuration

  • Intel® Pentium Dual Core Processor
  • 4GB, DDR3, 1600MHz memory
  • 120GB SATA3 2,5” SSD
  • Intel® Integrated Graphics
  • Windows 7 Professional

Supported clients

  • Caldera
  • TG Soft
  • Windows driver for Windows 7 and XP

Finishing & accessories

  • Built-in X-axis cutter
  • Online folder: 9m/min, 18m/min, 250 A0 CAD/CAM, fan fold or cross fold
  • Online stacker: auto forwarding and leveling
