KIP Folders

KIP on-line Folding System

KipFold 1000

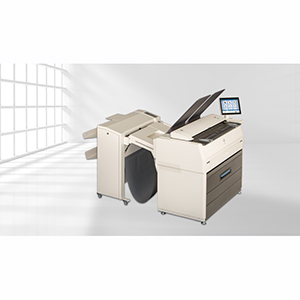

KIPFold 1000

ONLINE FAN-FOLD FOLDING SYSTEM

The KIPFold 1000 is a compact but powerful online folder designed to easily, conveniently and quickly fan fold documents.

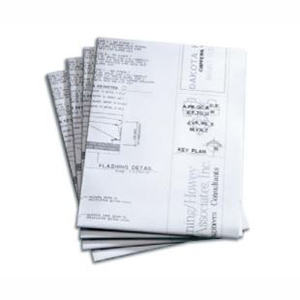

Folded documents packets are crisp and professional, ready for distribution. This in-line paper folder is environmentally friendly, making it ideal for decentralized production environments.

Documents up to 36” / 930 mm wide by any length are easily handed for fast fan folding.  In addition, fan-folded documents may be manually fed through the KIPFold 1000 to create finished fold packets in accordance with DIN, ANSI or ARCH* standard sizes.  Folded documents packets are crisp and professional, ready for distribution.  Unfolded documents are collected in the integrated catch bag, conveniently located underneath the main transfer bridge

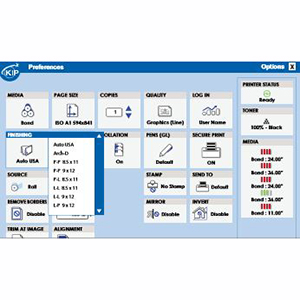

KIP software and application drivers provide a variety of advanced finishing options. Network and web based applications give users power over all fold parameters as well as the ability to select individual folding parameters at the workstation and store them as presets for future use. In addition, KIP Windows and AutoCAD Drivers feature full integration with KIPFold system features.

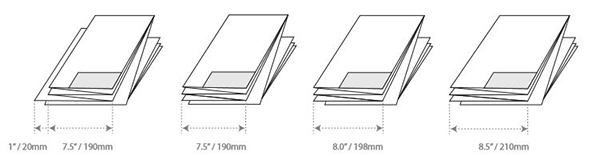

Eight Formats at the Press of a Button

The eight folding programs can be individually programmed within the following ranges:

  • Package width: 7.5”, 8.0”, 8.5”, 9.5”, 10”, 11”, 12” / 180 mm – 420 mm
  • Filing edge: 1” / 0 mm – 30 mm
  • Cross fold: 11”, 12” / 200 mm – 420 mm (adjustable)

The values entered are saved after the system has been switched off and can be recalled at any time.

RRP – £9,895.00. Product number – MACHFOLD1080

Download the KIPFold 1000 Brochure here.

KipFold 2800

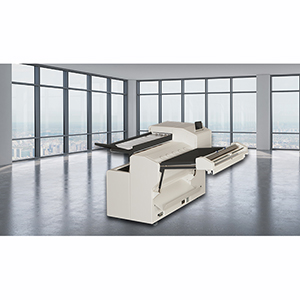

KIPFold 2800

Wide Format Document Folding System

Folding System Designed for

KIP 800 Color Series & KIP 70 Series Print Systems

SPEED, POWER & PRODUCTIVITY

Engineered for production folding with seamless integration to the KIP 800 and KIP 70 Series print systems. The KIPFold 2800 automates large format document finishing by providing folding and stacking in an efficient and compact design.

INTUITIVE DESIGN

  • Automatic Title Block Detection
  • Automatic Fold by Page Size
  • Customized Fold Presets
  • Advanced Technical Interface
  • Full Bi-Directional Communication
  • Superior Job Recovery Functionality
  • KIP System K Software Integration
  • Metric and Imperial Standard Size Folds

FOLD QUALITY & RELIABILITY

KIPFold 2800 with KIP System K Software integration provides seamless workflow to the KIP 800 Color and KIP 70 Series Monochrome print systems.

KIPFold 2800 is built to exacting standards, featuring a solid steel frame and stainless steel feed guide with low static transfer system for consistent and reliable operation. High quality components, sensors, precision bearings and solid design ensure precision and accurate folding.

The KIPFold 2800 uses proven folding technology based on a high precision blade and roller design for high production print environments. KIPFold 2800 offers industry leading fold quality, exact fold delivery, precise packets, and crisp fan folded documents to the millimeter.

VERSATILE PRODUCTION

Prints are folded and stacked at maximum speed, allowing for easy document filing and distribution. A reliable and durable fold roller system ensures maximum packet accuracy. Flat output stacking is included as a standard feature. Users may conveniently select fold style preferences at their workstation before printing.

The KIP 2800 folding system features the flexibility to fold documents with precision, regardless of print orientation. Prints are accepted in either landscape or portrait format, allowing for fast and efficient folding operation.

KIPFold 2800 Features:

  • Portrait & Landscape Packet Styles
  • Integrated Flat Stacking – Up to 100 Sheets
  • Offline Manual Folding
  • Unlimited Length Fan Fold (Optional)

SYSTEM K SOFTWARE

SYSTEM INTEGRATION

This unique integrated solution allows complete control of the folder and folding packets directly from all KIP Applications including the KIP Touchscreen, KIP PrintPro, KIP PrintPro.NET, KIP Windows and AutoCAD HDI drivers.

KIP System K Software allows all user levels to easily create and prepare prints for folding through the uniform software interface and application process.

KIPFold 2800 System K Software Features:

  • Simplify custom folds with preset editor
  • Print submission via PC and print drivers
  • System error reporting through email notification
  • Intelligent job recovery for accurate print accounting

RRP – £18,480.00. Product number – MACHFOLD2880

Download the KIPFold 2800 Brochure here.
